Product Name | Art. nr. | Weight | Delivery Time | Price | Qty |
---|---|---|---|---|---|
Rock drill BBG BH9 V T - H22x108
T-handle - Retainer Clip - Vibration reduced |
4-000-000-03563 | 15.80 | 1 day delivery | €2,882.99 |

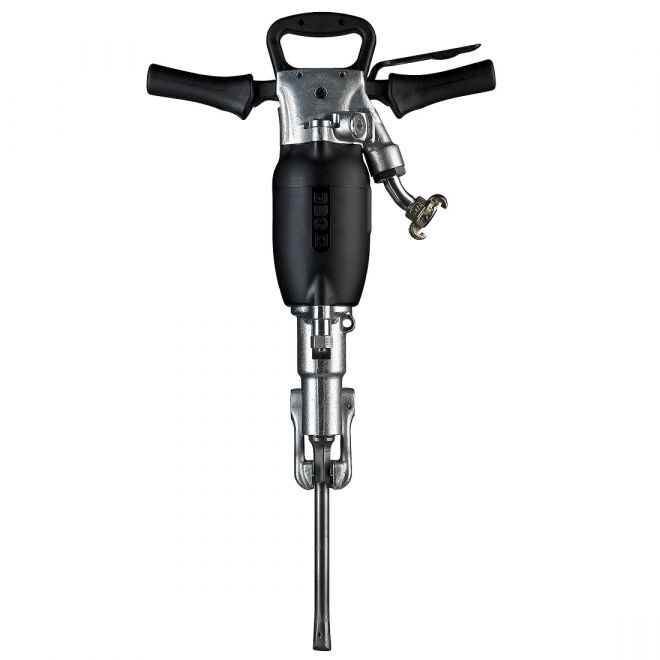

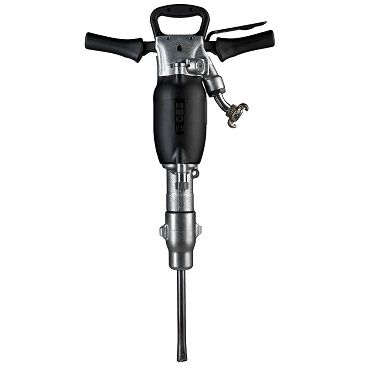

Rock drill BBG BH9 V T - H22x108 - T-handle - Vibration dampened.
The BBG BH9 VT/VTH Pneumatic rock drills with a t-handle are middle weight vibration reduced rock drills, which is a big plus. This gives the user a high drilling performance at low weight. The low air consumption gives the BH9 low operating costs, and with the compact design it enables an easy handling in tight spaces.
Applications:
- Medium-duty drilling activities.
- Drilling holes of 16-32mm.
- Most suitable for manual vertical drilling.
- With extra blowing functionality for cleaning the drill hole.
BBG hammers are highly reliable and have very low maintenance due to the uncomplicated and stable construction. The forged stainless steel with zinc surface protection in body and cover, as well as the robust bolt connections are able to withstand high working pressure and ensure an exceptionally long life.
Weight | 15.800000 |
---|---|
Manufacturer | BBG |
Country of Manufacturer | Austria |
Flushing Air / Water | *** / optional |
Silencer | *** |
T-handle | *** |
Trigger control | *** |
Vibration reduced | *** |
Vibration level (m/s2) | 12,9 |
Sound level (dB(A)) | 108 |
Length (mm) | 580 |
Bore (mm) | 52 |
Piston stroke (mm) | 40 |
Blows (1/s) | 47,5 |
Air consumption (l/s) | 15,2 |
Operating Pressure (bar) | 5 |
Drehzahl (U/min) | 280 |
Drehmoment (Nm) | 8 |
Energy (J) | 20 |
Connection thread Air | G ¾" |
Connection thread Water | G ½" |
Shank size Hex. (mm) | 22 x 108 |
Restraint system | Haltebügel / Klinksluiting / Retainer Clip |
Product Name | Art. nr. | Weight | Delivery Time | Price | Qty | |
---|---|---|---|---|---|---|
Line lubricator Lubro Star E10/1/1B - 0.6 liter
0.6 liter with feedcap, incl. 2x coupling 1". |
709003 | 2.30 | 1 Work day | €328.21 |
|
|
Lubricator Lubro Star E15/4/1B
4 liter 1" Built-in Lubricator without accessories. |
708992 | 3.50 | 1 Work day | €728.66 |
|
|
Lubricator Lubro Star E21/8/1B
8 liter 1" Built-in Lubricator without accessories. |
708995 | 5.00 | 1 Work day | €815.00 |
|
|
Lubricator Lubro Star SE15/4/1B
4 liter 1" Complete Stand Alone. |
708991 | 6.50 | On request | €858.00 |
|
|
Lubricator Lubro Star SE21/8/1B
8 liter 1" Complete Stand Alone. |
708998 | 11.00 | 1 Work day | €945.00 |
|
|
Lubricator Lubro Star SE21/9/2B
9 liter 2" Complete Stand Alone. |
709006 | 14.60 | 1 Work day | €995.00 |
|
|
Lubricator Lubro Star EH21/10/2AG
10 liter 2" Built-in Lubricator without accessories. |
709010 | 11.50 | 1 Work day | €1,468.66 |
|
|
Lubricator Lubro Star E21/9/2B
9 liter 2" Built-in Lubricator without accessories. |
708993 | 6.10 | 1 Work day | €885.00 |
|
|
Lubricator Lubro Star E21/9/1.5B
9 liter 1.5" Built-in Lubricator without accessories. |
709004 | 5.60 | 1 Work day | €759.62 |
|
|
Air hose 19 inner dia.
Roll of 20mtr |
709818 | 13.00 | 1 Work day | €130.00 |
|
|
Air hose 10 inner dia.
Roll of 50mtr |
709811 | 8.00 | On request | €175.00 |
|
|
Air hose 19 inner dia.
Roll of 20mtr |
709819 | 12.00 | 1 Work day | €83.80 |
|
|
Lightweight Air hose 20 inner dia.
Roll of 20mtr |
709821 | 4.50 | 1 Work day | €173.00 |
|
|
Lightweight Air hose 20 inner dia.
Roll of 60mtr |
709822 | 12.00 | 1 Work day | €355.00 |
|
|
Air hose 19 inner dia. ¾"
Roll of 25mtr |
709817 | 15.00 | On request | €100.75 |
|
|
Air hose 19 inner dia. ¾"
Roll of 25mtr |
709806 | 16.00 | 1 Work day | €125.75 |
|
