TOKU

TOKU

  • TNB 08 M
  • TNB 1 M
  • TNB 1 E / TNB 2 M
  • TNB 2 E / TNB 3 M
  • TNB 3 E
  • TNB 4 E / 5 M
  • TNB 5 E / 6 E / 6,5 E
  • TNB 7 E / 8 E / 10 E
  • TNB 100
  • TNB 14 E / 16 E
  • TNB 150 / 151
  • TNB 190
  • TNB 220 / 230

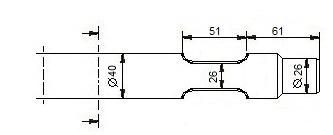

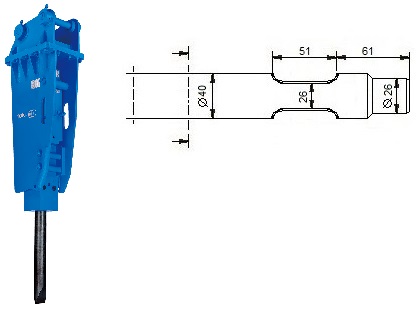

TNB 08 M

Chisels for hydraulic hammer Toku TNB 08 2 M.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 450 Bull point (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 450

L.450

860145 4.00 On request €149.60
Flat chisel (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 42x450 Flat chisel (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 42x450

Cross - W.42xL.450

860146 4.00 On request €149.60
Asphalt cutter (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 100x420 Asphalt cutter (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 100x420

Parallel - W.100xL.420

860148 4.00 On request €202.40
Wide chisel (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 120x410 Wide chisel (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 120x410

Cross - W.120xL.410

860147 4.00 On request €202.40
Tamping tool (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 450 Tamping tool (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 450
W.200x200/L.450
860149 16.00 On request €484.00
Bull point (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 650 Bull point (TOKU TNB 08M, KOMATSU JTHB 08, HUPPI 52) / 650

L.650

864145 7.00 On request €266.68

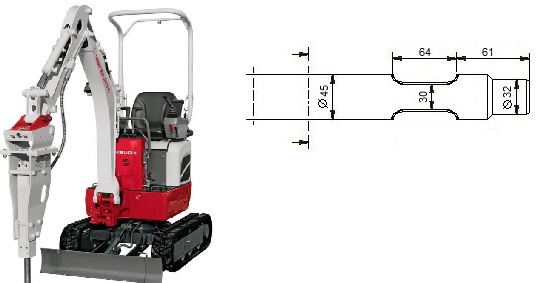

TNB 1 M

Chisels for hydraulic hammer Toku TNB 1 M.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 480 Bull point (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 480

L.480

860150 5.00 On request €154.00
Flat chisel (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 45x480 Flat chisel (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 45x480

Cross - W.45xL.480

860151 5.00 On request €154.00
Wide chisel (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 120x440 Wide chisel (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 120x440

Cross - W.120xL.440

860152 5.00 On request €206.80
Asphalt cutter (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 100x450 Asphalt cutter (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 100x450

Parallel - W.100xL.450

860153 5.00 On request €206.80
Tamping tool (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 450 Tamping tool (TOKU TNB1M, KOMATSU JTHB10, HUPPI 72) / 450
W.200x200/L.450
860154 17.00 On request €484.00

TNB 1 E / TNB 2 M

Chisels for hydraulic hammer Toku TNB 1 E / TNB 2 M.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (DRAGO DRH80, KOMATSU JTHB20, TOKU TNB1E/2M) / 510 Bull point (DRAGO DRH80, KOMATSU JTHB20, TOKU TNB1E/2M) / 510

L.510

860155 7.00 On request €187.00
Flat chisel (DRAGO DRH80 / TOKU TNB1E/2M) / 50x510 Flat chisel (DRAGO DRH80 / TOKU TNB1E/2M) / 50x510

Cross - W.50xL.510

860156 7.00 On request €187.00
Wide chisel (DRAGO DRH80 / TOKU TNB1E/2M) / 140x480 Wide chisel (DRAGO DRH80 / TOKU TNB1E/2M) / 140x480

Cross - W.140xL.480

860157 7.00 On request €264.00
Asphalt cutter (DRAGO DRH80 / TOKU TNB1E/2M) / 115x490 Asphalt cutter (DRAGO DRH80 / TOKU TNB1E/2M) / 115x490

Parallel - W.115xL.490

860158 7.00 On request €264.00
Tamping tool (TOKU TNB1E, KOMATSU JTHB20, DRAGO DRH80) / 480 Tamping tool (TOKU TNB1E, KOMATSU JTHB20, DRAGO DRH80) / 480
W.200x200/L.480
860159 19.00 On request €501.60
Bull point (DRAGO DRH80, KOMATSU JTHB20, TOKU TNB1E/2M) / 700 Bull point (DRAGO DRH80, KOMATSU JTHB20, TOKU TNB1E/2M) / 700

L.700

864146 10.00 On request €266.68

TNB 2 E / TNB 3 M

Chisels for hydraulic hammer Toku TNB 2 E / TNB 3 M.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (Drago DRH120, TOKU TNB2E/3M) / 600 Bull point (Drago DRH120, TOKU TNB2E/3M) / 600

L.600

863030 11.00 On request €290.40
Asphalt cutter (Drago DRH120, TOKU TNB2E/3M) / 130x580 Asphalt cutter (Drago DRH120, TOKU TNB2E/3M) / 130x580

Parallel - W.130xL.580

860162 11.00 On request €374.00
Flat chisel (Drago DRH120, TOKU TNB2E/3M) / 58x600 Flat chisel (Drago DRH120, TOKU TNB2E/3M) / 58x600

Cross - W.58xL.600

860160 11.00 On request €290.40
Wide chisel (Drago DRH120, TOKU TNB2E/3M) / 150x560 Wide chisel (Drago DRH120, TOKU TNB2E/3M) / 150x560

Cross - W.150xL.560

860161 11.00 On request €374.00

TNB 3 E

Chisels for hydraulic hammer Toku TNB 3 E.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 700 Bull point (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 700

L.700

860164 16.00 On request €387.20
Flat chisel (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 65x700 Flat chisel (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 65x700

cROSS - W.65xL.700

860165 16.00 On request €387.20
Wide chisel (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 150x650 Wide chisel (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 150x650

Cross - W.150xL.650

860166 16.00 On request €517.00
Asphalt cutter (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 130x670 Asphalt cutter (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 130x670

Parallel - W.130xL.670

860167 16.00 On request €517.00
Tamping tool (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 650 Tamping tool (TOKU TNB3E, KOMATSU JTHB40, DRAGO DRH150) / 650
W.200x200/L.650
860168 26.00 On request €717.20

TNB 4 E / 5 M

Chisels for hydraulic hammer Toku TNB 4 E / TNB 5 M.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (DRH180/250, JTHB50, TNB4E/5M, 302) / 720 Bull point (DRH180/250, JTHB50, TNB4E/5M, 302) / 720

L.720

860169 22.00 On request €492.80
Flat chisel (DRH180/250, JTHB50, TNB4E/5M, 302) / 75x720 Flat chisel (DRH180/250, JTHB50, TNB4E/5M, 302) / 75x720

Cross - W.75xL.720

860170 22.00 On request €492.80
Wide chisel (DRH180/250, JTHB50, TNB4E/5M, 302) / 150x670 Wide chisel (DRH180/250, JTHB50, TNB4E/5M, 302) / 150x670

Cross - W.150xL.670

860171 22.00 On request €675.40
Asphalt cutter (DRH180/250, JTHB50, TNB4E/5M, 302) / 150x700 Asphalt cutter (DRH180/250, JTHB50, TNB4E/5M, 302) / 150x700

Parallel - W.150xL.700

860172 22.00 On request €675.40

TNB 5 E / 6 E / 6,5 E

Chisels for hydraulic hammer Toku TNB 5 E / TNB 6 E / TNB 6,5 E.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (DRH280, TNB5/6E, JTHB60/65, 402) / 840 Bull point (DRH280, TNB5/6E, JTHB60/65, 402) / 840

L.840

860174 40.00 On request €778.80
Flat chisel (DRH280, TNB5/6E, JTHB60/65, 402) / 95x840 Flat chisel (DRH280, TNB5/6E, JTHB60/65, 402) / 95x840

Cross - W.95xL.840

860175 40.00 On request €778.80
Wide chisel (DRH280, TNB5/6E, JTHB60/65, 402) / 200x800 Wide chisel (DRH280, TNB5/6E, JTHB60/65, 402) / 200x800

Cross - W.200xL.800

861036 40.00 On request €1,203.40
Asphalt cutter (DRH280, TNB5/6E, JTHB60/65, 402) / 200x830 Asphalt cutter (DRH280, TNB5/6E, JTHB60/65, 402) / 200x830

Parallel - W.200xL.830

861037 40.00 On request €1,203.40

TNB 7 E / 8 E / 10 E

Chisels for hydraulic hammer Toku TNB 7 E / TNB 8 E / TNB 10 E.

The cutting edge of the chisel is cross to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (DRH650/900, TNB7/8/10E, JTHB 70, HUPPI 902) / 940 Bull point (DRH650/900, TNB7/8/10E, JTHB 70, HUPPI 902) / 940

L.940

860176 65.00 On request €1,254.00
Flat chisel (DRH650/900, TNB7/8/10E, JTHB 70, HUPPI 902) / 115x940 Flat chisel (DRH650/900, TNB7/8/10E, JTHB 70, HUPPI 902) / 115x940

Cross - W.115xL.940

860177 65.00 On request €1,254.00
Blunt chisel (DRH650/900, TNB7/8/10E, JTHB 70, HUPPI 902) / 860 Blunt chisel (DRH650/900, TNB7/8/10E, JTHB 70, HUPPI 902) / 860

L.860

860178 65.00 On request €1,223.20

TNB 100

Chisels for hydraulic hammer Toku TNB 100.

The cutting edge of the chisel is cross to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB 100) Bull point (TOKU TNB 100)

L.1050

860179 74.00 On request €1,427.80
Flat chisel (TOKU TNB 100) Flat chisel (TOKU TNB 100)

W.115xL.1050

860180 74.00 On request €1,427.80
Blunt chisel (TOKU TNB 100) Blunt chisel (TOKU TNB 100)

L.980

860181 74.00 On request €1,390.40

TNB 14 E / 16 E

Chisels for hydraulic hammer Toku TNB 14 E / TNB 16 E.

The cutting edge of the chisel is cross to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (DRAGO DRH1150/1600, TOKU TNB14/16E) / 1200 Bull point (DRAGO DRH1150/1600, TOKU TNB14/16E) / 1200

L.1200

860182 112.00 On request €2,147.20
Flat chisel (DRAGO DRH1150/1600, TOKU TNB14/16E) / 135x1200 Flat chisel (DRAGO DRH1150/1600, TOKU TNB14/16E) / 135x1200

Cross - W.135xL.1200

860183 112.00 On request €2,147.20
Blunt tool (DRAGO DRH1150/1600, TOKU TNB14/16E) / 1100 Blunt tool (DRAGO DRH1150/1600, TOKU TNB14/16E) / 1100

L.1100

860184 112.00 On request €2,094.40

TNB 150 / 151

Chisels for hydraulic hammer Toku TNB 150 / TNB 151.

The cutting edge of the chisel is cross to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB 150/151, HUPPI 1902)  / 1200 Bull point (TOKU TNB 150/151, HUPPI 1902) / 1200

L.1200

860519 113.00 On request €2,296.80
Flat chisel (TOKU TNB 150/151, HUPPI 1902) / 135x1200 Flat chisel (TOKU TNB 150/151, HUPPI 1902) / 135x1200

Cross - W.135xL.1200

860520 113.00 On request €2,296.80
Blunt tool (TOKU TNB 150/151, HUPPI 1902) / 1100 Blunt tool (TOKU TNB 150/151, HUPPI 1902) / 1100

L.1100

860521 113.00 On request €2,239.60

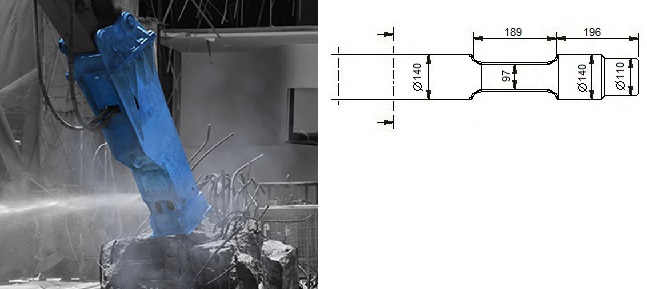

TNB 190

Chisels for hydraulic hammer Toku TNB 190.

The cutting edge of the chisel is cross to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB 190) Bull point (TOKU TNB 190)

L.1200

860522 123.00 On request €2,349.60
Flat chisel (TOKU TNB 190) Flat chisel (TOKU TNB 190)

W.140xL.1200

860523 123.00 On request €2,349.60
Blunt tool (TOKU TNB 190) Blunt tool (TOKU TNB 190)

L.1100

860524 123.00 On request €2,292.40

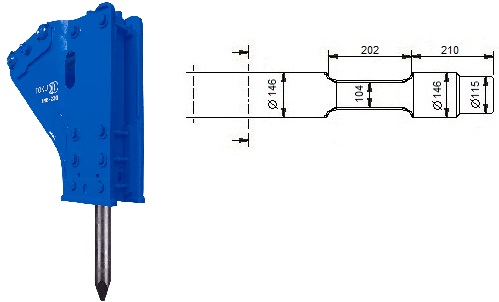

TNB 220 / 230

Chisels for hydraulic hammer Toku TNB 220 / TNB 230.

The cutting edge of the chisel is cross to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (TOKU TNB 220/230) Bull point (TOKU TNB 220/230)

L.1300

860196 145.00 On request €2,956.80
Flat chisel (TOKU TNB 220/230) Flat chisel (TOKU TNB 220/230)

W.145xL.1300

860197 145.00 On request €2,956.80
Blunt tool (TOKU TNB 220/230, KOMATSU JTHB 230) Blunt tool (TOKU TNB 220/230, KOMATSU JTHB 230)
L.1200
860194 145.00 On request €2,886.40
