ARROWHEAD

ARROWHEAD

  • Arrowhead S10
  • Arrowhead S20
  • Arrowhead S30
  • Arrowhead S40
  • Arrowhead S50
  • Arrowhead S60

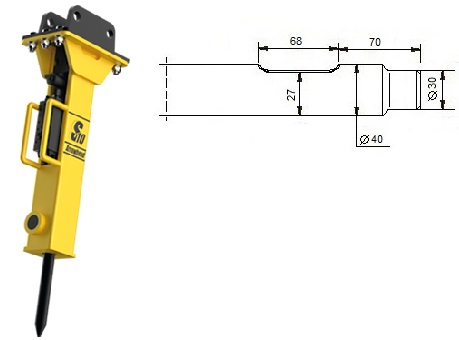

Arrowhead S10

Chisels for the hydraulic hammer Arrowhead S10.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull Point (Arrowhead S10) / 460 Bull Point (Arrowhead S10) / 460

L.460

863130 4.00 On request € 143.00
Flat chisel (Arrowhead S10) / 42x460 Flat chisel (Arrowhead S10) / 42x460

Cross - W.42xL.460

863131 4.00 On request € 143.00
Wide chisel (Arrowhead S10) / 120x410 Wide chisel (Arrowhead S10) / 120x410

Cross - W.120xL.410

863056 4.00 On request € 209.00
Asphalt cutter (Arrowhead S10) / 100x440 Asphalt cutter (Arrowhead S10) / 100x440

Parallel - W.100xL.440

863132 4.00 On request € 209.00

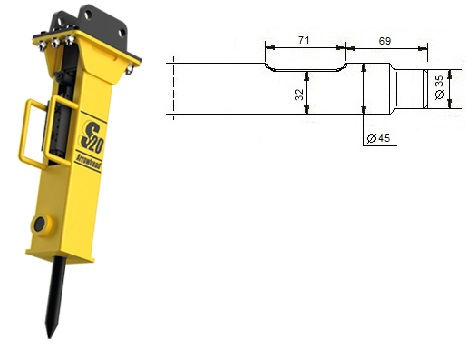

Arrowhead S20

Chisels for the hydraulic hammer Arrowhead S20.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (Arrowhead S20) / 500 Bull point (Arrowhead S20) / 500

L.500

863134 5.50 On request € 171.60
Flat chisel (Arrowhead S20) / 45x500 Flat chisel (Arrowhead S20) / 45x500

Cross - W.45xL.500

863135 5.50 On request € 171.60
Wide chisel (Arrowhead S20) / 120x460 Wide chisel (Arrowhead S20) / 120x460

Cross - W.120xL.460

863136 5.50 On request € 228.80
Asphalt cutter (Arrowhead S20) / 100x470 Asphalt cutter (Arrowhead S20) / 100x470

Parallel - W.100xL.470

863137 5.50 On request € 228.80

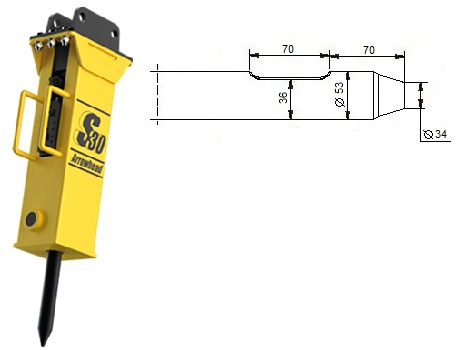

Arrowhead S30

Chisels for the hydraulic hammer Arrowhead S30.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (Arrowhead S30) / 580 Bull point (Arrowhead S30) / 580

L.580

863142 9.00 On request € 255.20
Flat chisel (Arrowhead S30) / 55x580 Flat chisel (Arrowhead S30) / 55x580

Cross - W.55xL.580

863143 9.00 On request € 255.20
Wide chisel (Arrowhead S30) / 140x550 Wide chisel (Arrowhead S30) / 140x550

Cross - W.140xL.550

863144 9.00 On request € 338.80
Asphalt cutter (Arrowhead S30) / 120x560 Asphalt cutter (Arrowhead S30) / 120x560

Parallel - W.120xL.560

863145 9.00 On request € 338.80

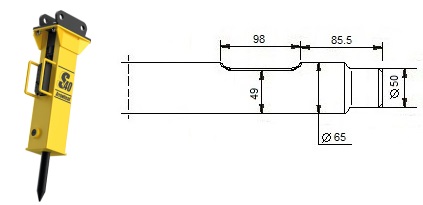

Arrowhead S40

Chisels for the hydraulic hammer Arrowhead S40.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull Point (Arrowhead S40) / 600 Bull Point (Arrowhead S40) / 600

L.600

863140 13.50 On request € 332.20
Flat chisel (Arrowhead S40) / 65x600 Flat chisel (Arrowhead S40) / 65x600

Cross - W.65xL.600

863141 13.50 On request € 332.20
Wide chisel (Arrowhead S40) / 150x550 Wide chisel (Arrowhead S40) / 150x550

Cross - W.150xL.550

863064 13.50 On request € 431.20
Asphalt cutter (Arrowhead S40) / 130x570 Asphalt cutter (Arrowhead S40) / 130x570

Parallel - W.130xL.570

863133 13.50 On request € 431.20

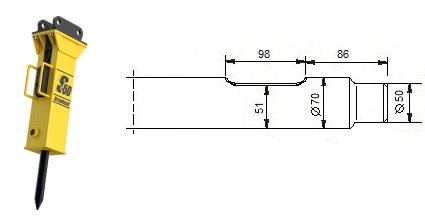

Arrowhead S50

Chisels for the hydraulic hammer Arrowhead S50.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (Arrowhead S50) / 600 Bull point (Arrowhead S50) / 600

L.740

863146 19.00 On request € 440.00
Flat chisel (Arrowhead S50) / 70x740 Flat chisel (Arrowhead S50) / 70x740

Cross - W.70xL.740

863147 19.00 On request € 440.00
Wide chisel (Arrowhead S50) / 150x690 Wide chisel (Arrowhead S50) / 150x690

Cross - W.150xL.690

863148 19.00 On request € 616.00
Asphalt cutter (Arrowhead S50) / 150x720 Asphalt cutter (Arrowhead S50) / 150x720

Parallel - W.150xL.720

863149 19.00 On request € 616.00

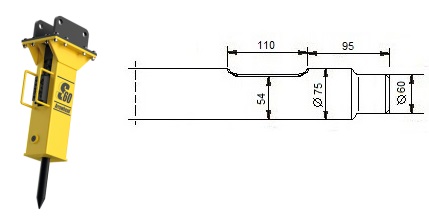

Arrowhead S60

Chisels for the hydraulic hammer Arrowhead S60.

The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.

Product Name1 Art. nr. Weight Delivery Time Price
Bull point (Arrowhead S60) / 720 Bull point (Arrowhead S60) / 720

L.720

863151 21.00 On request € 492.80
Flat chisel (Arrowhead S60) / 75x720 Flat chisel (Arrowhead S60) / 75x720

Cross - W.75xL.720

863152 21.00 On request € 492.80
Wide chisel (Arrowhead S60) / 150x670 Wide chisel (Arrowhead S60) / 150x670

Cross - W.150xL.670

863153 21.00 On request € 675.40
Asphalt cutter (Arrowhead S60) / 150x700 Asphalt cutter (Arrowhead S60) / 150x700

Parallel - W.150xL.700

863154 21.00 On request € 675.40
