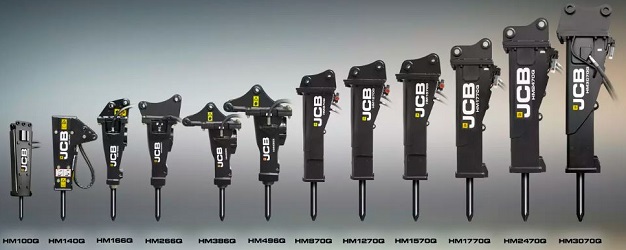

JCB Hammermaster
- HM 65
- HM 80
- HM 100 / HM 100 Q / HM 115
- HM 160 / HM 160 Q
- HM 165 Q / HM 166 Q
- HM 260 / HM 260 Q
- HM 265 Q / HM 266 Q
- HM 360 / HM 360 Q
- HM 385 Q / HM 386 Q
- HM 495 Q / HM 496 Q
- HM 860 Q
- HM 1260 Q
- HM 1560 Q
- HM 1570 Q
- HM 1760 Q
- HM 2460 Q
- HM 3060 Q
- HM 4160 Q
HM 65
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 65.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (JCB HM65) / 430
L.430 |
864250 | 4.00 | On request | €97.18 |
|
|
Flat chisel (JCB HM65) / 42x430
Cross - W.42xL.430 |
864251 | 4.00 | On request | €97.18 |
|
|
Wide chisel (JCB HM65) / 120x410
Cross - W.120xL.410 |
864252 | 4.00 | On request | €139.09 |
|
|
Asphalt cutter (JCB HM65) / 100x420
Parallel - W.100xL.420 |
864253 | 4.00 | On request | €139.09 |
|
|
Blunt tool (JCB HM65) - 200x200 / 420
W.200x200 / L.420 |
864254 | 16.00 | On request | €325.82 |
|
HM 80
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 80.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (DRAGO DBS40 / D&A 7V / JCB HM80 / SOOSAN SB10) / 420
L.420 |
863160 | 4.00 | On request | €140.80 |
|
|
Flat chisel (DRAGO DBS40 / D&A 7V / JCB HM80 / SOOSAN SB10)
Cross - W.42xL.420 |
863161 | 4.00 | On request | €140.80 |
|
|
Wide chisel (DRAGO DBS40 / D&A 7V / JCB HM80 / SOOSAN SB10) / 120x420
Cross - W.120xL.420 |
863162 | 4.00 | On request | €187.00 |
|
|
Asphalt cutter (DRAGO DBS40 / D&A 7V / JCB HM80 / SOOSAN SB10) / 100x420
Parallel - W.100xL.420 |
863163 | 4.00 | On request | €187.00 |
|
|
Bull point (DRAGO DBS40 / D&A 7V / JCB HM80 / SOOSAN SB10) / 620
L.620 |
863159 | 6.00 | On request | €275.00 |
|
|
Tamping tool (DRAGO DBS40 / D&A 7V / JCB HM80 / SOOSAN SB10) / 400
W.200x200 / L.400 |
863158 | 16.00 | On request | €475.20 |
|

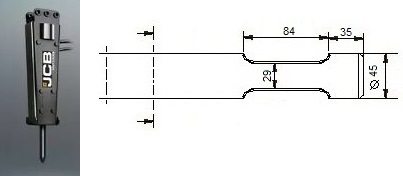

HM 100 / HM 100 Q / HM 115
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 100 / HM 100 Q / HM 115.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Flat chisel (JCB HM100/100Q/115) / 45x500
Cross - W.45xL.500 |
860291 | 5.50 | On request | €171.60 |
|
|
Bull point (JCB HM100/100Q/115) / 500
L.500 |
860290 | 5.50 | On request | €171.60 |
|
|
Wide chisel (JCB HM100/100Q/115) / 120x460
Cross - W.120xL.460 |
860292 | 5.50 | On request | €228.80 |
|
|
Asphalt cutter (JCB HM100/Q/115) / 100x470
Parallel - W.100xL.470 |
860293 | 6.00 | On request | €228.80 |
|
HM 160 / HM 160 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 160 / HM 160 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (1750, CAT H45s, CNH CB32, HM160, KXB 400N, RAM S21) / 580
L.580 |
864025 | 7.00 | On request | €171.60 |
|
|
Flat chisel (1750, CAT H45s, CNH CB32, HM160, KXB 400N, RAM S21) / 45x480
Cross - W.45xL.480 |
860071 | 6.00 | On request | €154.00 |
|
|
Bull point (1750, CAT H45s, CNH CB32, HM160, KXB 400N, RAM S21) / 480
L.480 |
860069 | 6.00 | On request | €154.00 |
|
|
Asphalt cutter (1750 / CAT H45s / CNH CB32 / HM160 / KXB 400N / RAM S21) / 100x450
Parallel - W.100xL.450 |
860073 | 6.00 | On request | €206.80 |
|
|
Wide chisel (1750, CAT H45s, CNH CB32, HM160, KXB 400N, RAM S21) / 120x440
Cross - W.120xL.440 |
860072 | 6.00 | On request | €206.80 |
|

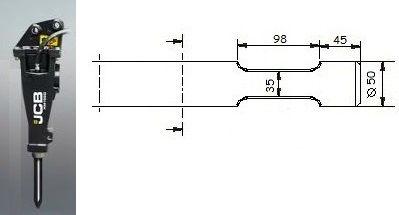

HM 165 Q / HM 166 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 165 Q / HM 166 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC Epiroc SB150, KM150, JCB HM165Q, CP110H) / 510
L.510 |
860706 | 7.00 | On request | €187.00 |
|
|
Bull point (AC Epiroc SB150, KM150, JCB HM165Q, CP110H) / 750
L.750 |
860698 | 11.00 | On request | €266.20 |
|
|
Flat chisel (AC Epiroc SB150, KM150, JCB HM165Q, CP110H) / 50x150
Cross - W.50xL.510 |
860707 | 7.00 | On request | €187.00 |
|
|
Wide chisel (AC Epiroc SB150, KM150, JCB HM165Q, CP110H) / 125x480
Cross - W.125xL.480 |
860708 | 7.00 | On request | €264.00 |
|
|
Asphalt cutter (AC Epiroc SB150, KM150, JCB HM165Q, CP110H) / 115x490
Parallel - W.115xL.490 |
860054 | 7.00 | On request | €264.00 |
|
|
Wide chisel (AC Epiroc SB150, KM150, JCB HM165Q, CP110H) / 125x700
Cross - W.125 x L.700 |
860697 | 11.00 | On request | €616.00 |
|
HM 260 / HM 260 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 260 / HM 260 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Flat chisel (CAT H63s, HM260, KXB500N, S23/N, CNH CB65) / 65x700
Cross - W.430xL.700 |
860087 | 16.00 | On request | €387.20 |
|
|
Bull point (CAT H63s, HM260, KXB500N, S23/N, CNH CB65) / 700
L.700 |
860910 | 16.00 | On request | €387.20 |
|
|
Wide chisel (CAT H63s, HM260, KXB500N, S23/N, CNH CB65) / 150x550
Cross - W.150xL.550 |
860088 | 13.00 | On request | €435.60 |
|
|
Asphalt cutter (CAT H63s, HM260, KXB500N, S23/N, CB65) / 130x570
Parallel - W.130xL.570 |
860089 | 13.00 | On request | €435.60 |
|
|
Bull point (CAT H63s, HM260, KXB500N, S23/N, CNH CB65) / 810
L.810 |
860086 | 19.00 | On request | €453.20 |
|
HM 265 Q / HM 266 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 265 Q / HM 266 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC SB200, CP180H, JCB HM265Q, KM200/205) / 600
L.600 |
860712 | 13.00 | On request | €341.00 |
|
|
Bull point (AC SB200, CP180H, JCB HM265Q, KM200/205) / 800
L.800 |
860762 | 19.00 | On request | €464.20 |
|
|
Flat chisel (AC SB200, CP180H, JCB HM265Q, KM200/205) / 65x600
Cross - W.65xL.600 |
860713 | 13.00 | On request | €341.00 |
|
|
Flat chisel (AC SB200, CP180H, JCB HM265Q, KM200/205) / 65x800
Cross - W.65xL.800 |
860743 | 19.00 | On request | €464.20 |
|
|
Wide chisel (AC SB200, CP180H, JCB HM265Q, KM200/205) / 125x650
Cross - W.125xL.650 |
860716 | 16.00 | On request | €510.40 |
|
|
Asphalt cutter (AC SB200, CP180H, JCB HM265Q, KM200/205) / 130x670
Parallel - W.130xL.670 |
860763 | 16.00 | On request | €510.40 |
|
HM 360 / HM 360 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 360 / HM 360 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Wide chisel (CAT H70s, HM360, KXB 600N, S25, CB85) / 150x690
Cross - W.150xL.690 |
860093 | 20.00 | On request | €616.00 |
|
|
Bull point (CAT H70s, HM360, KXB 600N, S25, CB85) / 740
L.740 |
860091 | 20.00 | On request | €440.00 |
|
|
Asphalt cutter (CAT H70s, HM360, KXB 600N, S25, CB85) / 150x720
Parallel - W.150xL.720 |
860094 | 20.00 | On request | €616.00 |
|
|
Flat chisel (CAT H70s, HM360, KXB 600N, S25, CB85) / 65x700
Cross - W.65xL.700 |
860092 | 20.00 | On request | €440.00 |
|

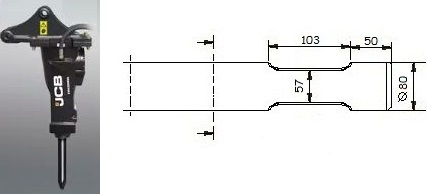

HM 385 Q / HM 386 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 385 Q / HM 386 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC/Epiroc SB300 / CP290H / JCB HM385Q / KM300) / 800
L.800 |
860701 | 28.00 | On request | €591.80 |
|
|
Flat chisel (AC/Epiroc SB300 / CP290H / JCB HM385Q / KM300) / 80x800
Cross - W.80xL.800 |
860710 | 28.00 | On request | €591.80 |
|
|
Asphalt cutter (AC SB300 / CP290H / JCB HM385Q / KM300) / 180x790
Parallel - W.180xL.790 |
860764 | 28.00 | On request | €814.00 |
|
|
Wide chisel (AC SB300 / CP290H / JCB HM385Q / KM300) / 160x770
Cross - W.160xL.770 |
860709 | 28.00 | On request | €814.00 |
|
|
Bull point (AC/Epiroc SB300 / CP290H / JCB HM385Q / Kubota KM300) / 1000
L.1000 |
864129 | 37.00 | On request | €1,474.45 |
|
HM 495 Q / HM 496 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 495 Q / HM 496 Q.
The cutting edge of the chisel is cross to driving direction of the excavator,
with the exception of the Asphalt cutter,
this one stands parallel to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC SB450/TEX400H, KM450/455, JCB HM495Q, CP 400H) / 840
L.840 |
860057 | 41.00 | On request | €778.80 |
|
|
Flat chisel (AC SB450/TEX400H, KM450/455, JCB HM495Q, CP 400H) / 95x840
Cross - W.95xL.840 |
860058 | 41.00 | On request | €778.80 |
|
|
Wide chisel (AC SB450/TEX400H, KM450/455, JCB HM495Q, CP 400H) / 180x800
Cross - W.180xL.800 |
860068 | 41.00 | On request | €1,203.40 |
|
|
Asphalt cutter (AC SB450/TEX400H, KM450/455, JCB HM495Q, CP 400H) / 200x830
Parallel - W.200xL.830 mm |
860074 | 41.00 | On request | €1,203.40 |
|
|
Bull point (AC SB450/TEX400H, KM450/455, JCB HM495Q, CP 400H) / 1200
L.1200 |
864130 | 60.00 | On request | €1,552.80 |
|
HM 860 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 860 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC MB700/800, CP750, HM580, HM860Q) / 1000
L.1000 |
860005 | 56.00 | On request | €976.80 |
|
|
Flat chisel (AC MB700/800, CP750, HM580, HM860Q) / 100x1000
Cross - W.100xL.1000 |
860006 | 56.00 | On request | €976.80 |
|
|
Wide chisel (AC MB700/800, CP750, HM580, HM860Q) / 200x950
Cross - W.200xL.950 |
860007 | 56.00 | On request | €1,421.20 |
|
|
Blunt tool (AC MB700/800, CP750, HM580, HM863Q) / 930
L.930 |
860008 | 56.00 | On request | €954.80 |
|
HM 1260 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 1260 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (KRUPP HM710/720CS/V, CP1150, JCB HM1260Q) / 1060
L.1060mm |
860502 | 76.00 | On request | €1,469.60 |
|
|
Wide chisel (KRUPP HM710/720CS/V, CP1150, JCB HM1260Q) / 240x1000
Cross - W.240xL.1000 |
860503 | 76.00 | On request | €2,136.20 |
|
|
Flat chisel (KRUPP HM710/720CS/V, CP1150, JCB HM1260Q) / 115x1060
Cross - W.115xL.1060mm |
860504 | 76.00 | On request | €1,469.60 |
|
|
Blunt tool (KRUPP HM710/720CS/V, CP1150, JCB HM1260Q) / 980
L.980mm |
860505 | 76.00 | On request | €1,456.40 |
|
HM 1560 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 1560 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC MB1600, KRUPP HM950, JCB HM1560Q, CP1650) / 1100
L.1100 |
860015 | 107.00 | On request | €1,898.60 |
|
|
Flat chisel (MB1600, HM950, JCB HM1560Q, CP1650) / 135x1100
Cross - W.135xL.1100 |
860016 | 107.00 | On request | €1,898.60 |
|
|
Blunt tool (MB1600, HM950, JCB HM1560Q, CP1650) / 1000
L.1000 |
860017 | 107.00 | On request | €1,850.20 |
|
|
Percussion buster (MB1600, HM950, JCB HM1560Q, CP1650) / 1200
L.1200 |
860305 | 107.00 | On request | €2,230.80 |
|
HM 1570 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 1570 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC MB 1500, JCB 1570 Q) / 1200
L.1200 |
860360 | 118.00 | On request | €2,246.20 |
|
|
Blunt tool (AC MB 1500, JCB 1570 Q) / 1100
L.1100 |
860362 | 118.00 | On request | €2,191.20 |
|
|
Flat chisel (AC MB 1500, JCB 1570 Q) / 135x1200
Cross - W.135xL.1200 |
860361 | 118.00 | On request | €2,246.20 |
|
HM 1760 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 1760 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Flat chisel (AC MB1700/EC140T, HM1000, CP RX25/26, JCB HM1760Q) / 140x1200
Cross - W.140xL.1200 |
860019 | 128.00 | On request | €2,279.20 |
|
|
Bull point (AC MB1700/EC140T, HM1000, CP RX25/26, JCB HM1760Q) / 1200
L.1200 |
860018 | 128.00 | On request | €2,279.20 |
|
|
Blunt tool (AC MB1700/EC140T, HM1000, CP RX25/26, JCB HM1760Q) / 1100
L.1100 |
860020 | 128.00 | On request | €2,219.80 |
|
HM 2460 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 2460 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Flat chisel (AC HB2200/EC 150T, HM1300, JCB HM2460Q) / 150x1300
Cross - W.150xL.1300 |
860022 | 160.00 | On request | €2,890.80 |
|
|
Bull point (AC HB2200/EC 150T, HM1300, JCB HM2460Q) / 1300
L.1300 |
860021 | 160.00 | On request | €2,890.80 |
|
|
Blunt tool (AC HB2200/EC 150T, HM1300, JCB HM2460Q) / 1200
L.1200 |
860023 | 160.00 | On request | €2,820.40 |
|
HM 3060 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 3060 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Flat chisel (AC HB3000/3100, HM2100, JCB HM3060Q) / 165x1350
Cross - W.165xL.1350 |
860025 | 197.00 | On request | €4,602.40 |
|
|
Bull point (AC HB3000/3100, HM2100, JCB HM3060Q) / 1350
L.1350 |
860024 | 197.00 | On request | €4,602.40 |
|
|
Blunt tool (AC HB3000/3100, HM2100, JCB HM3060Q) / 1250
L.1250 |
860026 | 197.00 | On request | €4,488.00 |
|
HM 4160 Q
Chisels for hydraulic hammer JCB HAMMERMASTER JCB HM 4160 Q.
The cutting edge of the chisel is cross to driving direction of the excavator.
Product Name1 | Art. nr. | Weight | Delivery Time | Price | ||
---|---|---|---|---|---|---|
Bull point (AC HB4100/4200/EC180T, HM2200, JCB HM4160Q) / 1700
L.1700 |
860325 | 308.00 | On request | €6,056.60 |
|
|
Flat chisel (AC HB4100/4200/EC180T, HM2200, JCB HM4160Q) / 180x1700
Cross - W.180xL.1700 |
860326 | 308.00 | On request | €6,056.60 |
|
|
Blunt tool (AC HB4100/4200/EC180T, HM2200, JCB HM4160Q) / 1600
L.1600 |
860327 | 308.00 | On request | €5,904.80 |
|
