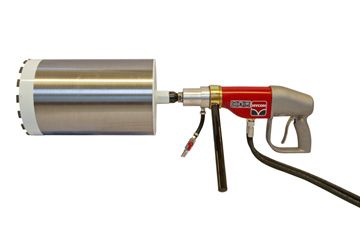

HYCON Core Drill HCD50-200
Out of stock
SKU
633161
€3,117.71
600 rpm / ø50-ø350mm
Included ½” - 1¼” Adaptor
Product Name | Art. nr. | Weight | Delivery Time | Price | |
---|---|---|---|---|---|
HYCON Core Drill HCD50-200 600 rpm / ø50-ø350mm | 633161 | 7.60 | On request | €3,117.71 |
The HCD50-200 core drill is the most powerful and easy manageable handheld core drill available. Perfect for any handheld coring in difficult accessible places where rigs or electric drill is not possible to use.
Drilling in concrete pipe, ventilation holes or just any type of job where handheld is just the fastest way to get the job done. It is unaffected by water, dust, etc. and is very popular for sewage installations. The fact that you can drill handheld up to ø350 mm and with no need for a drill rig opens up a world of opportunities and massive time savings. However, for tough jobs it fits in a standard drill rig.
The core drill comes with a build in hydraulic torque limiter, which assures max torque and no kickback if the core drill jams. The core drill has an automatic integrated security switch which stops the core drill if the core bit jams. However, in case of jamming, always loosen the core bit from the material, before you start drilling again.
The integrated security is set from the factory and may not be disturbed.
Download: Product sheet HCD50-200
Additional features:
● Safe handheld drilling in reinforced concrete and asphalt up to ø350mm diameter in confined spaces - for ventilation, heating, gas piping and other applications.
● Handheld drilling - no rig required.
● Low weight - direct hydraulic drive.
● Standard 1/2" BSP and 1-1/4" UNC core bits, dry and/or wet drilling - optimum flexibility.
● Safety - automatic stop if the core bit jams.
● Variable rotation speed - ensuring safe start and stop.
● 100% hydraulic with no electric hazard in wet working conditions - even under water.
● All parts run in oil - insuring parts long lifetime.
Weight | 7.600000 |
---|---|
Country of Manufacturer | Denmark |
Manufacturer | Hycon A/S |
Weight | 7,6 |
Noise level (1m Lpa dB) | 80 |
Max. pressure (bar) | 172 |
Operating Pressure (bar) | 100 |
Rotations (rpm) | 600 / Ø50 - Ø350 |
Vibration level (m/s2) | <2,5 |
Oil flow (lpm) | 20 |
