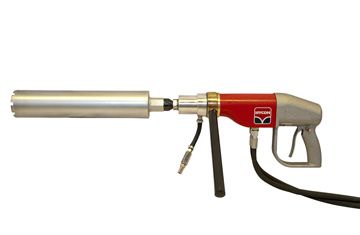

HYCON Core Drill HCD25-100
Out of stock
SKU
633160
€3,117.71
1500 rpm / ø25-ø100mm
Included ½” - 1¼” Adaptor
Product Name | Art. nr. | Weight | Delivery Time | Price | |
---|---|---|---|---|---|
HYCON Core Drill HCD25-100 1500 rpm / ø25-ø100mm | 633160 | 7.60 | On request | €3,117.71 |
The HCP25-100 core drill is the most powerful and easy manageable handheld core drill available. Perfect for any handheld coring in difficult accessible places where rigs or electric drill is not possible to use.
Drilling in concrete pipe, ventilation holes or just any type of job where handheld is just the fastest way to get the job done.
It is extremely easy to use and will drill through any material. There is no need for a drilll rig. However for more tough jobs the HCD25-100 fits in a standard drill rig.
The core drill comes with a build in hydraulic torque limiter, which assures max torque and no kickback if the core drill jams. The core drill has an automatic integrated security that makes the core drill stop if the core bit jams. However, in case of jamming, always loosen the core bit from the material, before you start drilling again.
The integrated security is set from the factory and may not be disturbed.
Download: Product sheet HCD25-100
Additional features:
● Safe handheld drilling in reinforced concrete and asphalt up to ø350mm diameter in confined spaces - for ventilation, heating, gas piping and other applications.
● Handheld drilling - no rig required.
● Low weight - direct hydraulic drive.
● Standard 1/2" BSP and 1-1/4" UNC core bits, dry and/or wet drilling - optimum flexibility.
● Safety - automatic stop if the core bit jams.
● Variable rotation speed - ensuring safe start and stop.
● 100% hydraulic with no electric hazard in wet working conditions - even under water.
● All parts run in oil - insuring parts long lifetime.
Weight | 7.600000 |
---|---|
Country of Manufacturer | Denmark |
Manufacturer | Hycon A/S |
Weight | 7,6 |
Noise level (1m Lpa dB) | 84 |
Max. pressure (bar) | 172 |
Operating Pressure (bar) | 100 |
Rotations (rpm) | 1500 / ø25-ø100 |
Vibration level (m/s2) | <2,5 |
Oil flow (lpm) | 20 |
Product Name | Art. nr. | Weight | Delivery Time | Price | Qty | |
---|---|---|---|---|---|---|
HYCON HPP06 Hydraulic Powerpack - Honda 6.5 HP Gasoline Single flow - Gasoline / 6,5 HP - 18 lpm - ultimate compact - lightweight | 633010 | 58.00 | On request | €3,877.20 | ||
HYCON HPP09 Single flow, Gasoline / 9,0 HP, 20 lpm | 633012 | 81.00 | On request | €4,905.20 | ||
HYCON HPP09E Single flow, Electric / 5,5 kW, 20 lpm | 633013 | 80.00 | On request | €5,829.84 | ||
HYCON HPP13D - not EU Single flow, Diesel / 11 HP, 20-30 lpm | 633016 | 114.00 | On request | €9,330.67 | ||
HYCON HPP18E Single flow, Electric / 11 kW, 30 or 40 lpm | 633020 | 128.00 | On request | €7,161.19 | ||
HYCON HPP18E Flex Single flow, Electric / 13,2 kW, 20-46 lpm | 633021 | 135.00 | On request | €9,863.21 | ||
HYCON HPP18V Flex Single flow, Gasoline / 18 HP, 20-40 lpm | 633018 | 108.00 | On request | €7,540.93 | ||
HYCON HPP18V Multiflex Dual flow, Gasoline / 18 HP, 1x 10-15-20-30-40, 2x 10-15-20 lpm | 633019 | 112.00 | On request | €9,530.65 | ||
HYCON HPP23V Flex Single use, Gasoline / 23 HP, 20-46 lpm | 633022 | 112.00 | On request | €7,903.82 | ||
HYCON HPP14V FLEX Hydraulic Powerpack - Vanguard 14 HP Gasoline Single flow - Gasoline / 14 HP - 20-30 lpm - easy to transport | 633017 | 81.00 | On request | €5,829.84 | ||
HYCON HFD Oil Flow Divider regulates the oilflow to the tool | 633166 | 20.00 | On request | €1,083.05 |
