Product Name | Art. nr. | Weight | Delivery Time | Price | Qty |
---|---|---|---|---|---|

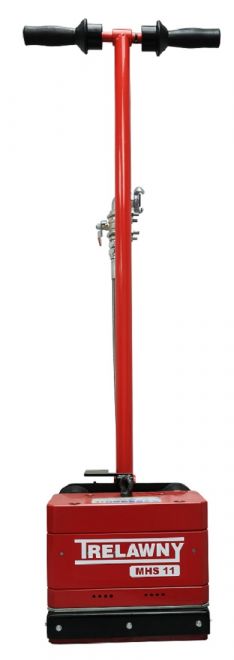

TRELAWNY Floor Scabbler MHS11 - One-Piece Bush - Shroud
11 carbide tipped scabbling heads - one-piece bush piston - dust shroud |
1596050 | 70.00 | On request | €3,125.00 |
The MHS11 introduces a new concept in pneumatic floor scabblers. Using smaller heads with a 70% increase in BPM (Blows Per Minute) and a 30% reduction in air consumption, the MHS11 maximises productivity, efficiency, value and ergonomics, without compromise.
It is the perfect machine for fast removal of laitance, level reduction and profiling for new concrete and thick screeds and sealants.
Production rates in excess 30m² per hour.
Features:
■ 11 replaceable carbide tipped scabbling heads for fast production and long service life.
■ 4,000 light blows per minute for fast production without damaging the underlying substrate.
■ Trelawny Vibro-Lo™ vibration reduction system for protection of operators.
■ Trelawny TVS® vacuum shroud system for protection of operators and surrounding environment.
Applications:
■ Removal of laitance, roughening and reduction of levels.
■ Aggressive keying without damaging the substrate.
■ Removal of coatings.
■ Fast removal of hazardous coating and contaminated materials with the TVS® shroud system.
Weight | 70.000000 |
---|---|
Manufacturer | Trelawny |
Country of Manufacturer | United Kingdom |
Weight | 70 |
Width (mm) | 285 |
Length (mm) | 340 |
Hoogte (mm) | 1290 |
Werkhoogte | 1295 |
Width x height x length (mm) | 305 x 813 x 356 |
Cutting width (mm) | 250 |
Blows (1/min) | 2200 x 11 |
Air hose bore (mm) | 19mm (0,75") |
Removal rate | 28m 2/hr (300ft 2/hr) |
Cutting depth (mm) | 3,0mm (0,118") |
Air consumption (l/s) | 26 lps - 55 cfm |
Vibration level (m/s2) | 5,0 |
Sound level (dB(A)) | 97 |
Noise level (1m Lpa dB) | 97,4 |
Noise level (Lwa dB) | 110,5 |
