HYCON Hydraulic Breaker HH35

Out of stock
SKU
633222
€4,534.45
Product Name Art. nr. Weight Delivery Time Price Qty
HYCON Hydraulic Breaker HH35

H28x160 or H32x152 or H32x160 - 30 lpm or 40 lpm model - 10.7 ms2

633222 29.40 On request €4,534.45

H28x160 or H32x152 or H32x160 - 30 lpm or 40 lpm model - 10.7 ms2

Product Name Art. nr. Weight Delivery Time Price Qty
HYCON Hydraulic Breaker HH35

H28x160 or H32x152 or H32x160 - 30 lpm or 40 lpm model - 10.7 ms2

633222 29.40 On request €4,534.45

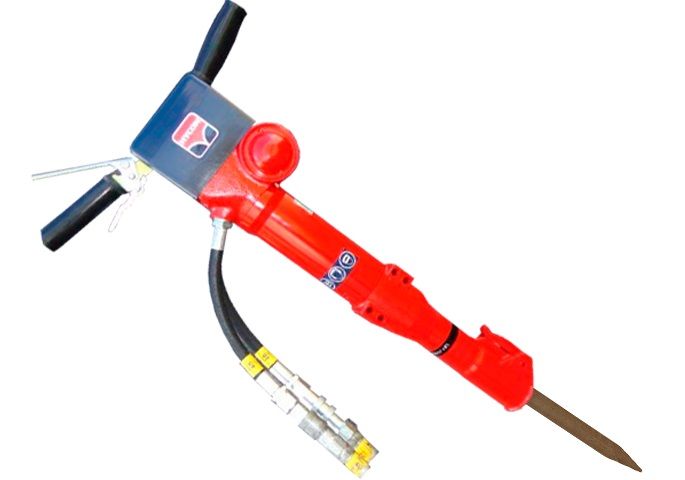

HYCON Hydraulic Breaker HH35 is exceptionally strong coping with all jobs requiring extreme power. The breaker has an extra accumulator, which adds even more power, and it hits more than twice as hard as the HH20 and outperform any other 45 kg breaker in the market - no matter if pneumatic or hydraulic.
It is designed for breaking hard concrete, asphalt, ramming jobs etc. HH35 comes standard with the HYCON vibration-reduced handle. It is especially used in contracting, demolition and road work industries.

Standard tool size is hex. 32x160 mm. The breaker can be connected to the HYCON power packs and other hydraulic power sources. It is available both as 30 and 40 l.p.m. models.

Download: Product sheet HH35

Technical details
Weight 29.400000
Manufacturer Hycon A/S
Country of Manufacturer Denmark
Oil flow (lpm) 30 / 40
Operating Pressure (bar) 130
Max. pressure (bar) 160
Blow frequency (1/min) 1100 (30 lpm) / 1400 (40 lpm)
Blow energy (J) 130
Noise level (1m Lpa dB) 99
Noise level (Lwa dB) 111
Vibration level (m/s2) 10,7
Shank size Hex. (mm) 28x160 - 32x152 - 32x160
