HYCON HRD30 Hydraulic Rock drill
On request
SKU
633169
€ 8,986.00
Drill shank H22x108mm
| Product Name | Art. nr. | Weight | Delivery Time | Price | Qty |
|---|---|---|---|---|---|
| HYCON HRD30 Hydraulic Rock drill
Drill shank H22x108mm |
633169 | 29.00 | On request | € 8,986.00 |

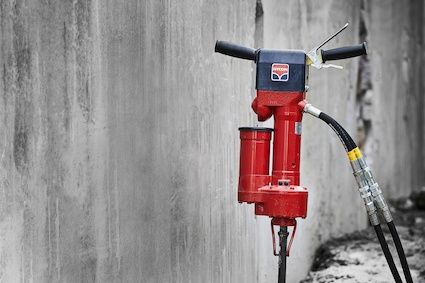

The HYCON HRD30 Hydraulic Rock drill has a built in air flushing and 4 different settings of blow frequency and rotations. The rock drill is characterized by a very high performance in relation to weight, and its high quality means long life. The drill rods are hex 22x108 mm, and therefore all standard drills can be used.
Download:
Product sheet HRD30
| Weight | 29.000000 |
|---|---|
| Manufacturer | Hycon A/S |
| Country of Manufacturer | Denmark |
| Shank size Hex. (mm) | 22x108 |
| Blow frequency (1/min) | 40 Hz |
| Width (mm) | 406 |
| Total length (mm) | 708 |
| Noise level (Lwa dB) | 105 |
| Max. pressure (bar) | 172 |
| Operating Pressure (bar) | 130 |
| Rotations (rpm) | 320 |
| Vibration level (m/s2) | 13 |
| Oil flow (lpm) | 30 |
| Flushing air flow | 10 m3/h |
| Product Name | Art. nr. | Weight | Delivery Time | Price | Qty | |
|---|---|---|---|---|---|---|
 |
HYCON HPP06 Hydraulic Power pack
Single flow - with Honda 6.5 HP Gasoline motor |
633010 | 58.00 | 1 Work day | € 4,827.00 |
|
 |
HYCON HPP09 Hydraulic Power pack
Single flow - with Honda 9HP Gasoline motor |
633012 | 81.00 | 1 Work day | € 6,111.00 |
|
 |
HYCON HPP09E Hydraulic Power pack
Single flow - with Electric motor |
633013 | 80.00 | 1 Work day | € 7,260.50 |
|
 |
HYCON HPP13D Hydraulic Power pack (not EU)
Single flow - with Kohler 11 HP Diesel motor - 20-30 lpm |
633016 | 114.00 | 1 Work day | € 11,625.00 |
|
 |
HYCON HPP18E Hydraulic Power pack
Single flow - with Electric motor |
633020 | 128.00 | 1 Work day | € 7,952.25 |
|
 |
HYCON HPP18E Flex Hydraulic Power pack
Single flow - with Electric motor |
633021 | 135.00 | 1 Work day | € 10,952.15 |
|
 |
HYCON HPP18V Flex Hydraulic Power pack
Single flow - with Vanguard 18 PK Gasoline motor |
633018 | 108.00 | 1 Work day | € 9,392.80 |
|
 |
HYCON HPP18V Multiflex Hydraulic Power pack
Dual flow - with Vanguard 18 PK Gasoline motor |
633019 | 112.00 | 1 Work day | € 11,875.00 |
|
 |
HYCON HPP23V Flex Hydraulic Power pack
Single flow - with Vanguard 23 HP Gasoline motor |
633022 | 112.00 | 1 Work day | € 9,850.00 |
|
 |
HYCON HPP14V FLEX Hydraulic Power pack
Single flow - with Vanguard 14 PK Gasoline motor |
633017 | 81.00 | 1 Work day | € 7,260.50 |
|
