210-5 EQ - E-Z Drill Multi-gang drill - 5 Concrete drills
Out of stock
SKU
731465
€0.00
5-gang equipment-mounted model - Safety swivel lock
| Product Name | Art. nr. | Weight | Delivery Time | Price | |
|---|---|---|---|---|---|
| 210-5 EQ - E-Z Drill Multi-gang drill - 5 Concrete drills
5-gang equipment-mounted model - Safety swivel lock |
731465 | 862.60 | On request | On request |
|

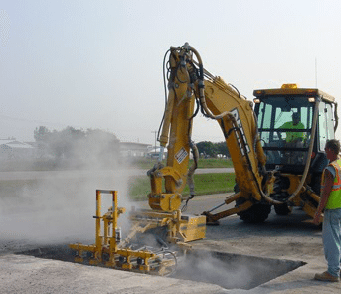

With the 210-5 EQ MT you can drill five holes at once and quickly reposition the drill using the fingertip controls to shift it left or right. Like all of E-Z Drill’s equipment-mounted models, the 210-5 EQ MT can drill to 18 inches deep. You can power it with a 500 cfm air compressor or with our 120-gallon air tank and a 375 cfm air compressor. The drill features a safety swivel lock that secures it for safe transportation from patch to patch.
Option:
• Air Tank – Reduce air requirements with the 120-gallon air tank that can be used with a 375 cfm air compressor to operate all five drills.
Download: Product sheet 210-5 EQ MT
| Weight | 862.600000 |
|---|---|
| Manufacturer | E-Z Drill |
| Country of Manufacturer | United States |
| Lower Length (A) | 47 in (119.4 cm) |
| Frame Length (B) | 44 in (111.8 cm) |
| Overall Length (A) + (B) | 91 in (231.1 cm) |
| Width (mm) | 47 in (119.4 cm) |
| Hoogte (mm) | 35 in (88.9 cm) |
| Drill Distance from Corner (cm) | 6 in (15.2 cm) |
| Drill Distance from Ground (cm) | 3 in (7.6 cm) |
| Drill hole depth (cm) | 18 in (45.7 cm) |
| Drill diam. | 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm) |
| Rock Drill (pneumatic) | BBG SH 21 / CP 32A |
| Rock Drill Weight | 54 lbs (24.5 kg) |
| Chuck size (mm) | 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm) |
| Air consumption (m3/min) | 500 cfm (14.0 m 3 /min) |
| Max. pressure (bar) | 90 psi (6.2 bar) |
| Energy (J) | 36 fpb (49 J) |
| Blow frequency (1/min) | 2200 bpm |
| Rotations (rpm) | 288 rpm |
